Features
The SCX800A-3 is powered with an engine that clears the world’s toughest EU Stage V emission regulations,
it is even more capable on worksites as its clean performance is easy on both the environment and society alike.
The crane has a new moment limiter with the large 12.1-inch touchscreen display with an interface that will deliver a superior visibility.
The display has an operator interface with new sensing for live readout of counterweight specification, ground contact pressure, list and trim indicator.
To ensure that workers can safely work on the crane, handrails on the catwalks have been standardized and each access to the machine has been improved.
Surround view system ARGUS that merges and displays images from multiple cameras is optionally available*.
*It is available for European specifications only.
Specifications
Liftcrane
| Max. lifting load×Working radius | 80 t × 3.3 m |
|---|---|
| Boom length | 9.5-54.5 m |
| Crane jib length | 9.5-18.0 m |
| Boom + crane jib length | 45.5+18.0 m |

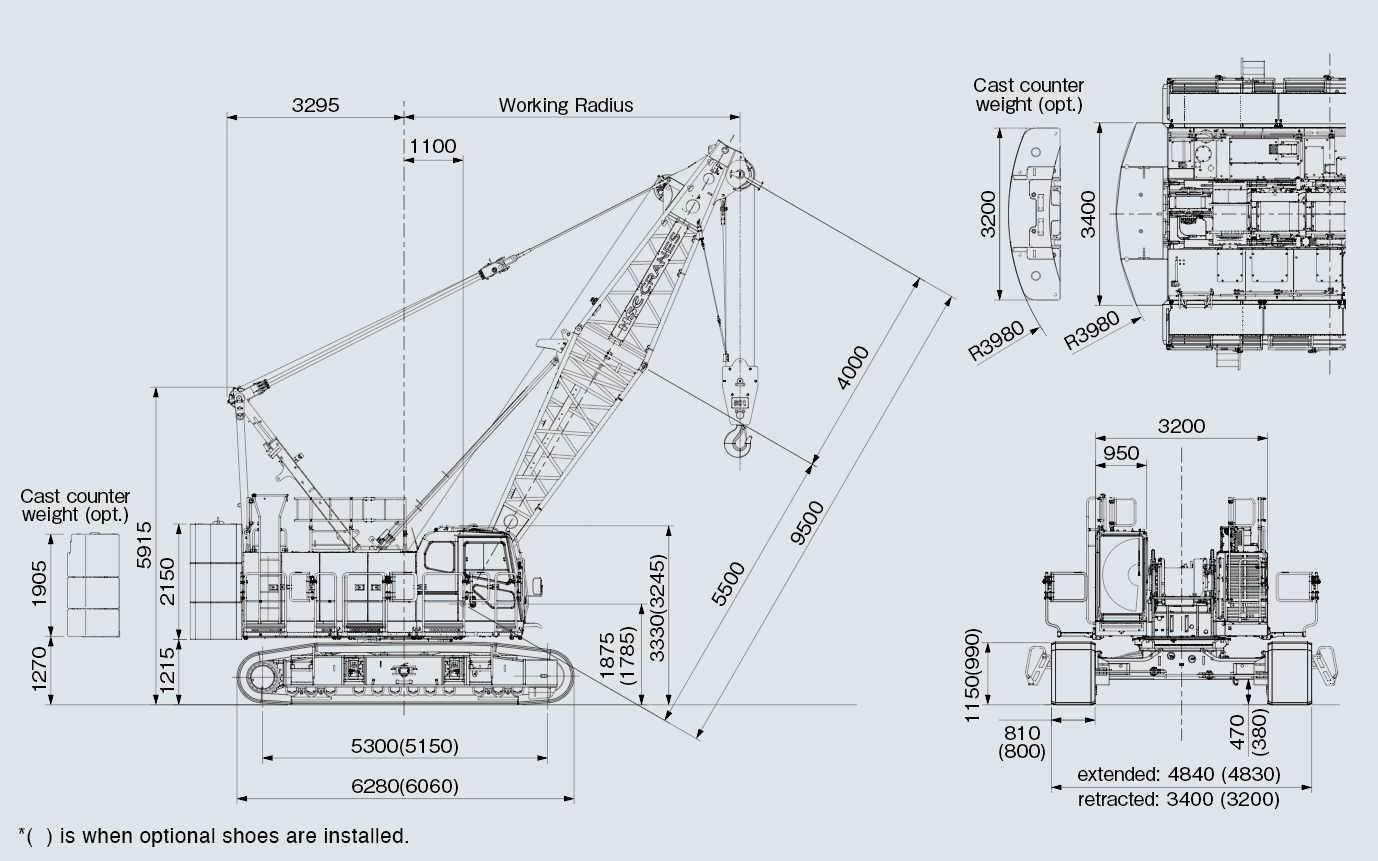

Dimensions
